OVERVIEW
Get Smarter About Your Environment With The RX3000
The HOBO RX3000, Onset’s most flexible remote data logging station, provides instant access to site-specific environmental data anywhere, anytime via the internet. The station combines the versatility and sensor quality of more expensive systems, an onboard LCD display, and the convenience of plug-and-play operation. The RX3000 is a configurable system.
The RX3000 station is the basic component of the cost-effective and scalable HOBOnet Field Monitoring System for crop management, environmental research, and greenhouse operations.
You can customise your RX3000 to suit your specific needs, or you can select one of our Weather Station Kits.
Highlighted Features
- Flexible support for a broad range of sensors
- LCD display for easy field deployment
- Data access through LI-COR Cloud IoT platform (formerly HOBOlink)
- Get 24/7 web access to your data via web browser
- Verify RX3000 system status remotely
- Set up and manage alarm notifications over the web
- Schedule automated delivery of data
- Plug-and-play operation
- Alarm notifications via text, email
- Rugged double-weatherproof enclosure
- Configurable from your mobile device
- Optional Analog Input, Relay, and Water Level Sensor Modules
- Remote water level and water flow monitoring with Onset’s Water Level Module.
Applications
- Weather Station
- Energy Monitoring
- Water Level Monitoring
- Remote Machine Operation
Measurements
The RX3000 Data Logger supports the following measurements (sensors sold separately):
Temperature, Relative Humidity, 4-20mA, AC Current, AC Voltage, Air Velocity, Amp Hour (Ah), Amps (A), Barometric Pressure, Carbon Dioxide, Compressed Air Flow, DC Current, DC Voltage, Differential Pressure, Event, Gauge Pressure, Kilowatt Hours (kWh), Kilowatts (kW), Leaf Wetness, Light Intensity, Power Factor (PF), Pulse Input, Rainfall, Soil Moisture, Volatile Organic Compound, Volt-Amp Reactive (VAR), Volt-Amp Reactive Hour, Volt-Amps (VA), Volts (V), Water Flow, Water Level, Watt Hours (Wh), Watts (W), Wind
Important Note:
HOBOware software and USB cable are required for initial setup of WiFi units or Ethernet units with Static IP addresses.
-
LI-COR CLOUD (formerly HOBOLINK)
A web-enabled software for Remote Monitoring and HOBOnet Field Monitoring Systems.
A comprehensive cloud environmental monitoring platform for HOBO RX products, LI-COR Cloud IoT Platform (formerly HOBOlink) integrates near real-time, research-grade environmental data from RX stations into its single, intuitive platform’s robust tools.
Not sure which plan is right for you? For RX Devices, you can choose between three plans:
RX-BASIC RX-STANDARD RX-PREMIUM Description Value plan for up to 10 measurements with longer logging intervals Advanced monitoring capability with standard sensor support Advanced monitoring capability with best sensor support Max # of Measurements 10 25 Supports max sensors for each device added Fastest Logging Interval Every Hour Every 5 Minutes Supports each device’s max logging rate Remote access and monitoring via HOBOlink Included Included Included -
LIVE DATA FEEDS
24/7 Data Access with HOBOlink
The HOBO RX3000 Station transmits data to HOBOlink – Onset’s cloud-based software platform. HOBOlink makes it easy to access current and historical weather data, manage and control your RX3000 stations remotely, and set alarm notifications. You can also schedule automatic delivery of data files.
Live Data
Weather: Onset is using a HOBO RX3000 Remote Monitoring System to monitor weather outside of Onset Corporate Headquarters. View Now >>
Learn more about HOBOlink
-
SPECIFICATIONS
Operating range -40° to 60°C (-40° to 140°F); no remote communications for battery
voltage less than 3.9 V DCSmart Sensor Connectors 10 Smart Sensor Network Cable 100 m (328 ft) maximum Smart Sensor Data Channels Maximum of 15 (some smart sensors use more than one data channel;
see sensor manual for details)Module Slots 2 Logging Rate 1 second (RX3001 and RX3002) or 1 minute (RX3003 and RX3004) to 18
hoursTime Accuracy ±8 seconds per month in 0° to 40°C (32°F to 104°F) range;
±30 seconds per month in -40° to 60°C (-40° to 140°F) rangeBattery Type/Power Source 4 Volt, 10 AHr, rechargeable sealed lead-acid; external power required
using one of these options: AC power adapter (AC-U30), solar panel
(SOLAR-xW), or external power source 5 V DC to 17 V DC with external
DC power cable (CABLE-RX-PWR)Rechargable Battery Service Life Typical 3–5 years when operated in the temperature range -20° to 40°C
(-4°F to 104°F); operation outside this range will reduce the battery
service lifeMemory 32 MB, 2 million measurements, continuous logging Alarm Notification Latency Logging interval plus 2–4 minutes, typical Enclosure Access Hinged door secured by two latches with eyelets for use with usersupplied
padlocksLCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this rangeMaterials Outer enclosure: Polycarbonate/PBT blend with stainless steel hinge
pins and brass inserts; Inner enclosure: Polycarbonate; Gaskets:
Silicone rubber; Cable channel: EPDM rubber; Cable opening cover:
Aluminum with ABS plastic thumb screws; U-Bolts: Steel with zinc
dichromate finishSize 18.6 x 18.1 x 11.8 cm (7.3 x 7.1 x 4.7 in.); see diagrams on next page Weight 2.2 kg (4.85 lb) Mounting 3.8 cm (1.5 inch) mast or wall mount Environmental Rating Weatherproof enclosure, NEMA 4X (requires proper installation of
cable channel system)CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU)Ethernet (RX3001
Connector One RJ45/100BaseT Wi-Fi (RX3002)
Network Standards IEEE 802.11b/g/n Frequency Range 2.412–2.484 GHz Antenna Connector 1, no diversity supported Data Rates 1, 2, 5.5, 11 Mbps (802.11b); 6, 9, 12, 18, 24, 36, 48, 54 Mbps (802.11g
802.11n, HT20 MCS0 (6.5 Mbps) to HT20 MC87 (65 Mbps)Number of Selectable Radio Subchannels Up to 14 channels; profiles available will include USA, France, Japan,
Spain, Canada, and “Other” (multiple countries)Radio Modulations OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM Security WEP 64/128, WPA-PSK, AES end-to-end encryption, WPA2,
protocols not listed are not supportedMaximum Receive Level -10 dBm (with PER <8%) Receiver Sensitivity -72 dBM for 54 Mbps, -87 dBm for 11 Mbps, -89 dBm for 5.5 Mbps,
-90 dBm for 2.0 Mbps, -92 dBm for 1.0 MbpsCellular (RX3003 and RX3004)
Wireless Radio RX3003:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz,
UMTS/HSPA+: Five band 800/850/900/1900/2100 MHz
RX3004:
GSM/GPRS/EDGE: Quad band 850/900/1800/1900 MHz
UMTS/HSPA+: Seven band 800/850/900/1800/1900/2100 MHz
LTE: Twelve Band 700/800/850/900/1800/1900/2100/2600 MHzAntenna RX3003: Penta band
RX3004: 4G LTE -
SENSORS
Onset have a complete range of external smart sensors to suit the HOBO RX3000, RX2100 Range, U30, H21 and H22 Data Logger series.

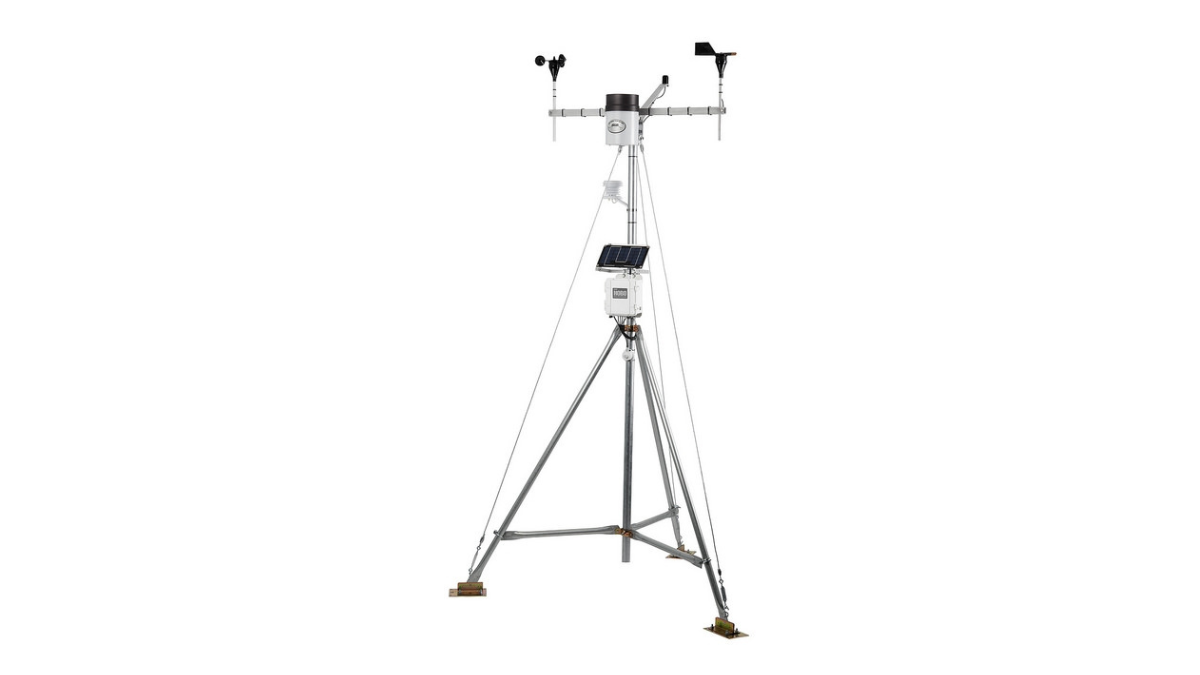

HOBO RX3000 – Outdoor Remote Monitoring Station
From: $2,875.00 ex GST
The HOBO RX3000 is Onset’s next-generation remote data logging station that provides instant access to site-specific environmental data anywhere, anytime via the internet.
