Perfect for HOBO U12, UX120-006M, MX1100 & ZW data loggers

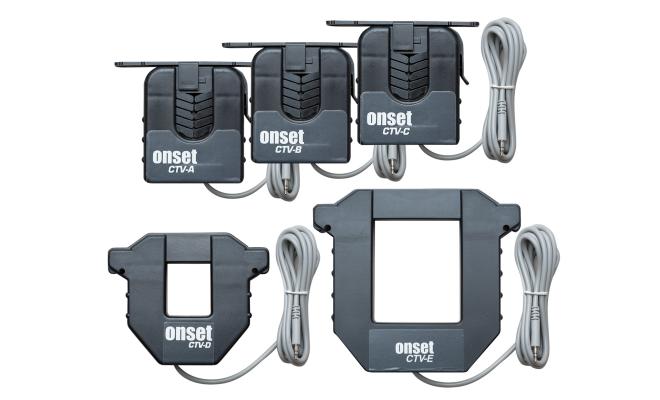

This split-core sensor records AC amperage; for use with HOBO U12, UX120-006M, MX1100, and ZW series external-channel data loggers. With an input of AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag.

Features

• UL Listed
• Sensor power included from line voltage
• Self-gripping split-core design for fast installation
• Available in 5 ranges – 20, 50, 100, 200 & 600 Amps



Range	2 to 20, 5 to 50, 10 to 100, 20 to 200, 60 to 600 Amps
Accuracy with H8	±5.0% of full scale
Accuracy with U12	±4.5% of full scale
Accuracy with UX120-006M, MX1104 and MX1105	±2.1% of full scale
Response time (from 10% to 90% of amplitude)	see table below
Input current	AC current, sine wave, single phase 50 Hz or 60 Hz, load power factor 0.5 to 1.0 lead or lag
Voltage rating	600 VAC
Construction and operating environment	Molded plastic housing for indoor use per UL508; pivoting leg (leg on CTV-D and CTV-E units is fully removable); UL listed
Cable length	1.8m cable (6 foot)
Dimensions	see table below

Part No.	Range (Amps AC)	Approximate Response Time (milliseconds)	Dimensions
			Window	Outer Length	Outer Width	Height
CTV-A	2-20	440	2.8 cm x 2.3 cm 1.1 in. x 0.9 in.	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-B	5-50	200	2.8 cm x 2.3 cm 1.1 in. x 0.9 in	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-C	10-100	100	2.8 cm x 2.3 cm 1.1 in. x 0.9 in	7.4 cm 2.9 in	6.6 cm 2.6 in	2.5 cm 1.0 in
CTV-D	20-200	450	3.8 cm x 3.3 cm 1.5 in. x 1.3 in	9.9 cm 3.9 in	11.9 cm 4.7 in	2.8 cm 1.1 in
CTV-E	60-600	490	7.4 cm x 6.4 cm 2.9 in. x 2.5 in	13.5 cm 5.3 in	15.0 cm 5.9 in	2.8 cm 1.1 in
