The free InTemp app makes it a snap to configure and read out InTemp loggers, and automatically upload reports to the InTempConnect cloud service. View data, check logger status, set alarms, and create and share secure PDF reports to streamline reporting and compliance.

With the app, you can choose from preset configurations (for refrigerator, storage, freezer and more) or create your own configuration for other monitoring applications. To keep things secure, you can set an encrypted passkey that other mobile devices will require for connection to the logger.

Download App

• InTemp For iOS

• InTemp for Android

Who It’s For

The InTemp mobile app is right for you if:

• Your organization is using InTemp data loggers to monitor ambient and controlled environments
• You want full control of InTemp logger and InTemp Gateway functions, including
  • programming & starting loggers,
  • downloading data, and
  • reporting

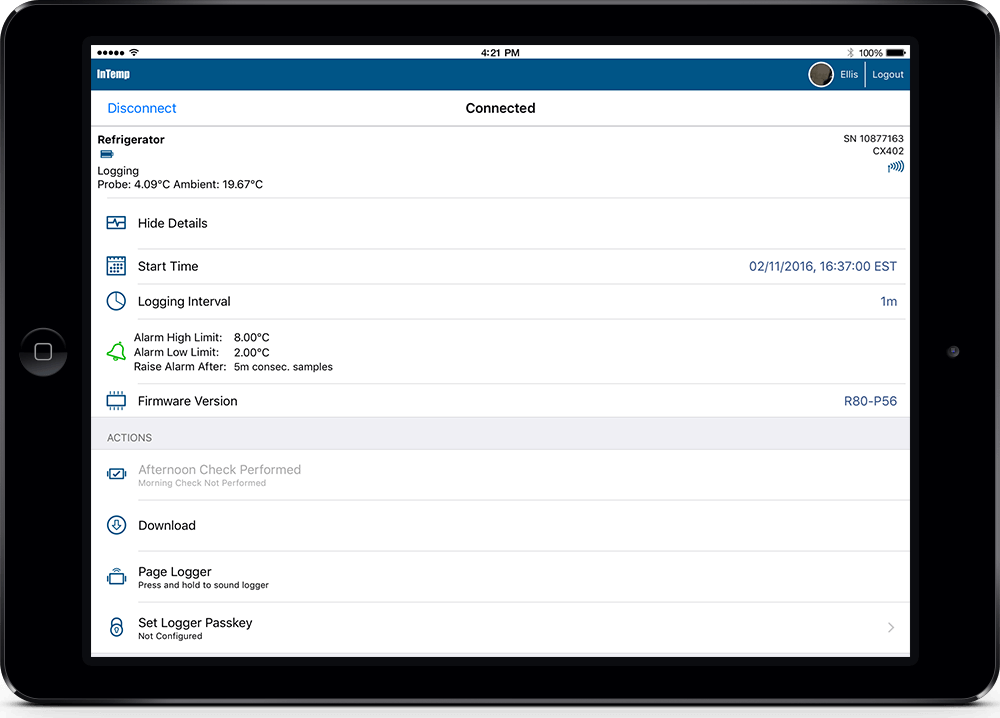

Connected Screen

See details about the current logger deployment, including start time, logging interval, alarm limits, and if a daily check has been performed. Additionally you can configure and start the logger, download the recorded data, page the logger and set a passkey.

Alarms

All CX loggers have an LED indicator that blinks red when temperatures exceed high or low thresholds. CX400 models also have an audible alert.

Easy Configuration

A CX logger configuration contains the logging interval, logger start time, and alarm settings. Select from multiple default configurations or create your own custom configuration.

Quick Checks

Performing daily checks of CX400 loggers is as simple as connecting to the logger and tapping Perform Morning or Afternoon Check. You can also set a reminder in the app for the morning or afternoon.

Loggers Display

The Loggers screen in the InTemp app displays loggers within range in a list sorted by alarm status. Each row in the list represents a single logger, and displays key information such as the deployment name, battery power, status, sensor readings, serial number, and signal strength.

Generating Reports

The InTemp App automatically syncs with the InTempConnect cloud-based service, which provides command-center control over the supply chain. A secure PDF or XLSX report will give you information about when the logger was started and downloaded, a summary of any alarm excursions, a graph, min/max/average temperatures, and an audit report table that shows when and who connected to a logger.

The Basics

To begin using the InTemp app with a logger:

1. Download the InTemp app to your phone or tablet.

2. For CX400 and CX450 loggers, install the batteries. Insert the external probe (CX402 loggers).

3. Open the app and enable Bluetooth in your device settings if prompted.

4. Using the InTemp app only: Swipe left to the Standalone user screen. Tap the Create Account link and fill in the fields. Once your account is created, log in from the Standalone User screen.

5. For CX450 loggers, create a logger profile under Settings if using the app only. See Managing Profiles for details in the user guide above. Note that all other CX loggers have default preset logger profiles, but you can also create your own.

6. Tap the Devices icon. The logger should appear in the list like the example below. If it does not, make sure it is within range of your phone or tablet or press the button to wake up the logger (CX500, CX600, or CX700 series only). Tap the logger to connect to it. See Connecting to a Logger with the InTemp App in the first chapter in the User guide above for additional connection tips.
Important: CX502, CX602, and CX702 loggers can only be started once. Do not configure these loggers until you are ready to use them.

7. Once connected, tap Configure. Swipe left and right to select a logger profile. Type a name or label for the logger and tap Start to load the selected profile to the logger. If you have multiple loggers to configure with the app, you can select Bulk Configure to set them up. See Configuring a Logger with the App in the first chapter of the User guide above for details.
Important: Loggers configured by an InTempConnect user can then only be accessed by InTempConnect users associated with the same administrator account (and with required privileges).

Please note: If you’re an InTemp Connect user, please refer to the User guide above for further information pertaining to your set up.

All the features within the InTemp app are accessed through the icons at the bottom of the screen.

Legend:

Tap this icon:	To do this:
	View loggers or gateways within range of your phone or tablet. Connect to a device to configure it, perform a check (CX400 loggers only), download data from loggers, and more.
	Generate logger reports and share them with others.
	Add or edit logger profiles (if using the InTemp app only) and change report settings, units, time zone, and more. Get help with the app and view contact information if you have additional questions.
	Log out of the app. In addition, if you are not logged in as an InTempConnect user, edit your app user profile or add app users. If you are logged in as an InTempConnect user, check your user information and roles.
