OVERVIEW

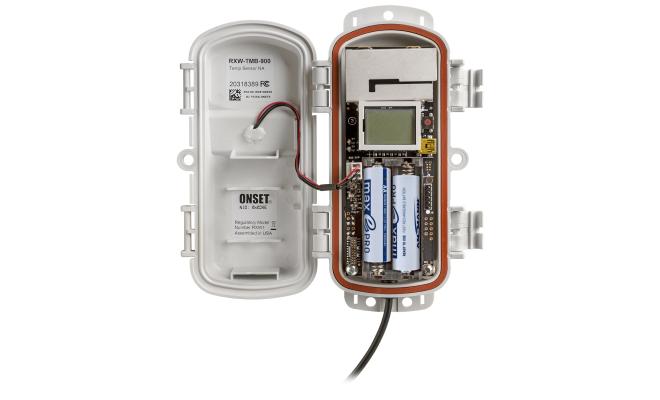

Monitor conditions from anywhere with HOBOnet Temperature Sensor
A cost-effective and scalable solution for web-enabled monitoring of air, soil, and water temperatures. The LI-COR Cloud IoT platform (formerly HOBOlink) wireless sensors communicate data directly to the HOBO RX3000 or the HOBO MicroRX station, or pass data through other wireless sensors back to the central station. They are preconfigured and ready to deploy, and data is accessed through LI-COR’s Cloud IoT platform.
Highlighted Features
Sensor Features
- Measurement range of -40° to 100°C (-40° to 212°F)
- High accuracy: ± 0.2°C ( ± 0.36°F)
- Stainless-steel sensor tip
- Sensor and cable rated for immersion in water or soil up to 50°C for up to 1 year
Wireless Features- 900 MHz wireless mesh self-healing technology
- 450 to 600 meter (1,500 to 2,000 feet) wireless range and up to five hops
- Up to 50 wireless sensors or 336 data channels per HOBO RX station
- Simple button-push to join the HOBOnet wireless network
- Onboard memory to ensure no data loss
- Powered by rechargeable AA batteries and built-in solar panel
Important Information
A complete system requires at least one HOBO RX3000 Remote Monitoring Station, a HOBOnet Wireless Manager, and a HOBOnet Wireless Sensor, OR one HOBO MicroRX Station (which has an integrated HOBOnet Wireless Manager) and a HOBOnet Wireless Sensor. HOBOnet Wireless Repeaters (RXW-RPTR-xxx or RXW-RPTR-B-xxx) can be added to extend the range.
-
SPECIFICATIONS
Sensor
Measurement Range -40° to 100°C (-40° to 212°F) Accuracy ±0.25°C from -40° to 0°C (±0.45°F from -40° to 32°F)
±0.20°C from 0° to 70°C (±0.36°F from 32° to 158°F)
±0.25°C from 70° to 100°C (±0.45°F from 158° to 212°F)Resolution 0.02°C (0.036°F) Drift <0.01°C (0.018°F) per year Response Time (typical, to 90% of change) Without solar radiation shield: 2 minutes, 30 seconds in air moving 1 m/sec
With RS3-B solar radiation shield: 5 minutes in air moving 1 m/secWireless Mote
Operating Temperature Range -25° to 60°C (-13° to 140°F) with rechargeable batteries
-40° to 70°C (-40° to 158°F) with lithium batteriesRadio Power 12.6 mW (+11 dBm) non-adjustable Transmission Range Reliable connection to 457.2 m (1,500 ft) line of sight at 1.8 m (6 ft) high
Reliable connection to 609.6 m (2,000 ft) line of sight at 3 m (10 ft) highWireless Data Standard IEEE 802.15.4 Radio Operating Frequencies RXW-TMB-900: 904–924 MHz
RXW-TMB-868: 866.5 MHz
RXW-TMB-921: 921 MHz
RXW-TMB-922: 916–924 MHzModulation Employed OQPSK (Offset Quadrature Phase Shift Keying) Data Rate Up to 250 kbps, non-adjustable Duty Cycle <1% Maximum Number of Motes Up to 50 wireless sensors or 336 data channels per one HOBO RX station Logging Rate 1 minute to 18 hours Number of Data Channels 2 Battery Type/ Power Source Two AA 1.2 V rechargeable NiMH batteries powered by built-in solar panel or two AA 1.5 V lithium batteries for operating conditions of -40° to 70°C (-40° to 158°F) Battery Life With NiMH batteries: Typical 3–5 years when operated in the temperature range -20° to 40°C (-4°F to 104°F) and positioned toward the sun (see Deployment and Mounting), operation outside this range will reduce the battery service life
With lithium batteries: 1 year, typical useMemory 16 MB Dimensions Sensor: 5.3 x 33 mm (0.2 x 1.3 inches)
Cable length: 5 m (16.4 ft)
Mote: 16.2 x 8.59 x 4.14 cm (6.38 x 3.38 x 1.63 inches)Weight Sensor and cable: 82.5 g (2.91 oz)
Mote: 223 g (7.87 oz)Materials Sensor: Stainless steel waterproof tip
Mote: PCPBT, silicone rubber sealEnvironmental Rating Sensor and cable: Immersion in water up to 50°C (122°F) for 1 year
Mote: IP67, NEMA 6 -
SENSORS
Onset have a complete range of HOBOnet wireless sensors and external Smart Sensors to suit the HOBO RX3000, RX2100 Range, U30, H21 and H22 Data Logger series.
HOBOnet Temperature Sensor
$534.00 ex GST
A solar-powered wireless sensor that works with the HOBOnet system to monitor air, soil, and water temperatures.
