OVERVIEW
Make Light Usage Analysis Easier with HOBO

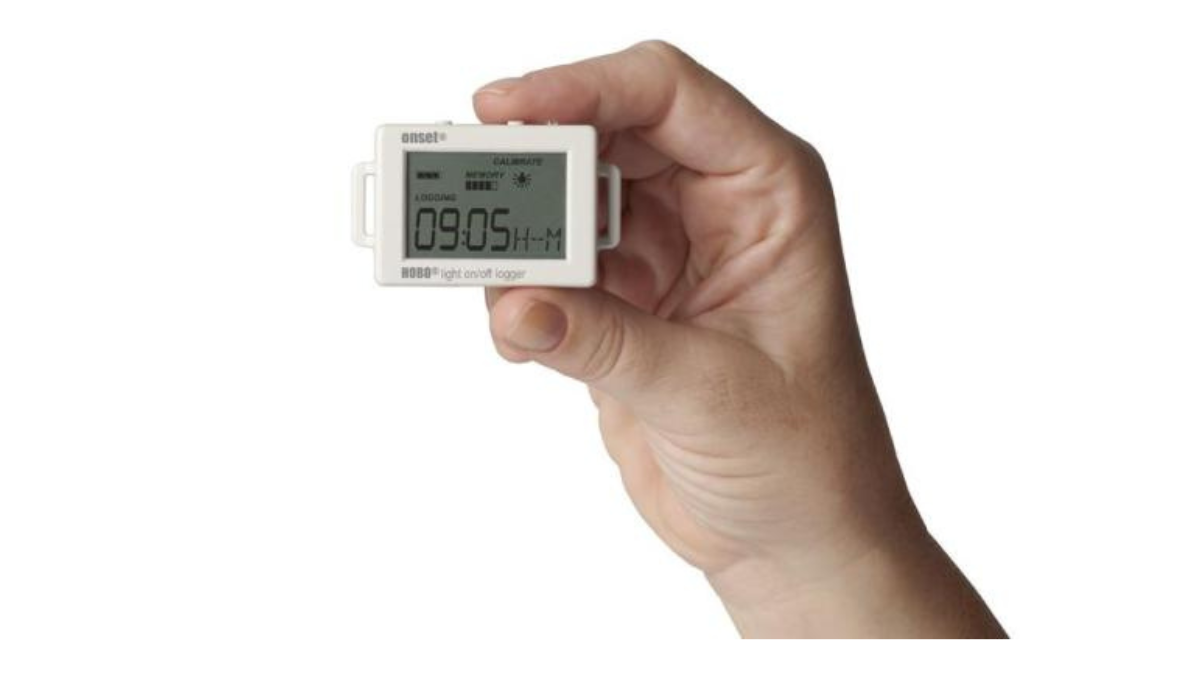

The HOBO Light On/Off data logger monitors indoor light changes with an internal sensor and records light on and off conditions, making it ideal for building energy audits and light usage analysis. The HOBO UX90-002 Light On/Off Data Logger has a standard 128 KB memory and is capable of 84,650 measurements.
Features
- Auto-calibration of ON and OFF thresholds ensures reliable readings
- User adjustable sensitivity control for low/high light level conditions
- Highly recommended light pipe accessory eliminates effects of ambient light to ensure the most accurate readings
- Compatible with HOBOware and HOBOware Pro software for logger setup, graphing and analysis
Important Information
Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro USB Drive software purchase). See compatible items below.
-
SPECIFICATIONS
Light Threshold > 65 lux Light Type LED, CFL, fluorescent, HID, incandescent, natural Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory full, push button, or date & time Time Accuracy ±1 minute per month at 25°C (77°F) (see Plot A in User Manual) Power Source One 3V CR2032 lithium battery and USB cable Battery Life 1 year typical use Memory 128 KB (84,650 measurements, maximum) Download Type USB 2.0 interface Full Memory Download Time 10 seconds for 128 KB; 30 seconds for 512 KB Logger Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specificationLCD LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or
go blank in temperatures outside this rangeSize 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) Weight 23 g (0.81 oz) Environmental Rating IP50 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU). -
SOFTWARE
HOBOware Software
HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>
HOBO UX90 Light on/off Data Logger 128K
$298.00 ex GST
The HOBO Light On/Off data logger monitors indoor light changes with an internal sensor and records light on and off conditions, making it ideal for building energy audits and light usage analysis.
