OVERVIEW
Make Your Energy Audits Easier and More Efficient with our 4-channel Analogue Data Logger
A high-performance, LCD display data logger, supporting up to four external sensors to measure and record parameters such as temperature, current, voltages, and third-party sensors. This logger is ideal for energy audits, building commissioning studies, equipment scheduling, and more.
The HOBO 4-Channel Analog data logger has 16-bit resolution and can record up to 1.9 million measurements or events. The four external channels accept a variety of sensors, including temperature and split-core AC current sensors as well as 4-20 mA and voltage input cables (sold separately). Using HOBOware®, you can easily configure an alarm to trip when the sensor reading rises above or falls below a measurement that you specify. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions. The logger can also calculate minimum, maximum, average, and standard deviation statistics. This easy-to-use data logger has a built-in LCD screen to check current readings and to monitor logging status, battery use, and memory consumption in between readouts.
Features
- Twice the accuracy of previous models with 16-bit resolution
- Flexible support for a wide range of external sensors
- LCD confirms logger operation and displays near real-time measurement data
- Provides minimum, maximum, average, and standard deviation logging options
- On-screen alarms notify you when a sensor reading exceeds set thresholds
- Stores 1.9 million measurements for longer deployments between offloads
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Important Information
External sensors sold separately. Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro CD or USB software purchase). See Related Products below.
-
SPECIFICATIONS
Logger with
Cable TypeCABLE4-20mA CABLE-2.5-
STEREOCABLEADAP5 CABLEADAP10 CABLEADAP24 Measurement
Range0 to 20.1 mA 0 to 2.5 V 0 to 5.0 V 0 to 10 V 0 to 24 V Accuracy ±0.001 mA
±0.2% of
reading±0.1 mV
±0.1% of
reading±0.2 mV
±0.3% of
reading±0.4 mV
±0.3% of
reading±1.0 mV
±0.3% of
readingResolution 0.3 µA 40 µV 80 µV 160 µV 384 µV Logger
Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing);
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specificationLogging Rate 1 second to 18 hours, 12 minutes, 15 seconds Logging Modes Fixed interval (normal), burst, or statistics Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory full, push button, or date & time Restart Mode Push button Time Accuracy ±1 minute per month at 25°C (77°F), see Plot A in User Manual Power Source Two AAA 1.5 V alkaline batteries, user replaceable, and USB cable Battery Life 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater Memory 4 MB (1.9 million measurements, maximum) Download Type USB 2.0 interface Full Memory Download
TimeApproximately 1.5 minutes LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range Size 10.8 x 5.41 x 2.54 cm (4.25 x 2.13 x 1 in.) Weight 107.5 g (3.79 oz) Environmental Rating IP50 CE The CE Marking identifies this product as complying with all relevant directives in the European Union (EU). Note: The HOBO U-Shuttle (U-DT-1) is not compatible with this logger.
-
SOFTWARE
HOBOware Software
HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>

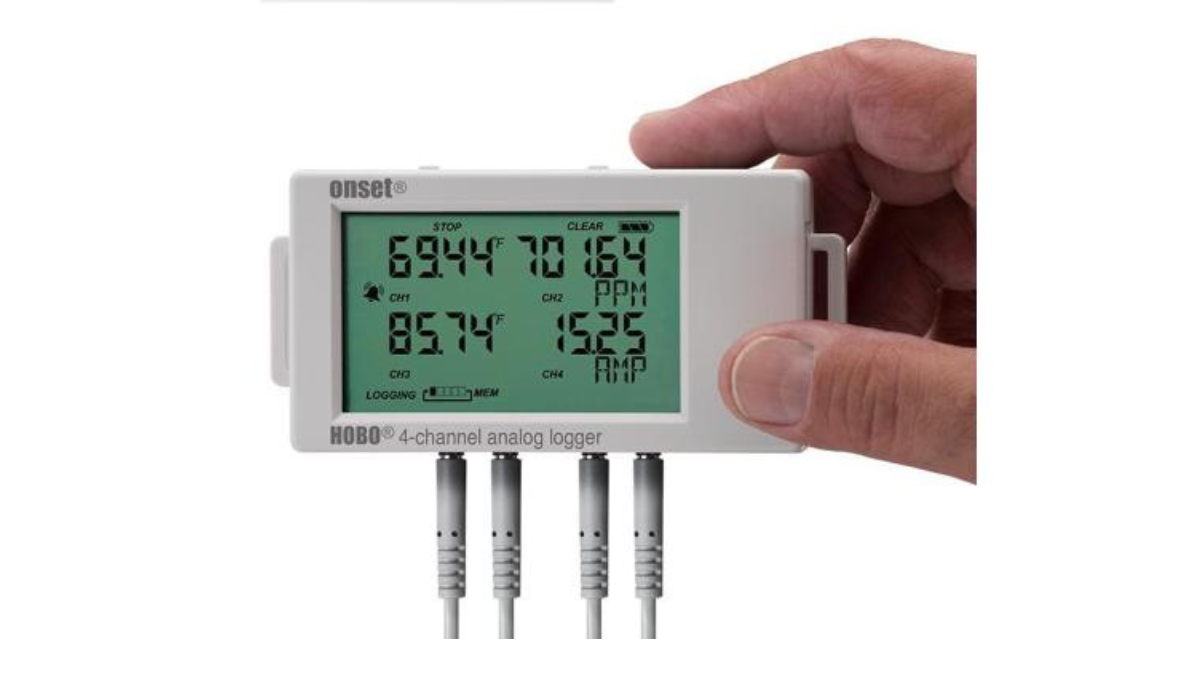

HOBO UX120-006M – 4-Channel Analogue Data Logger
$427.00 ex GST
The HOBO UX120-006M Analogue Logger is a high-performance, LCD display data logger with high accuracy support up to four external sensors
