OVERVIEW
Monitor and log conditions to ensure occupant comfort
With integrated sensors to measure and record temperature and relative humidity (within 3.5% accuracy) in indoor environments. This logger is ideal for monitoring occupant comfort in office buildings, tracking food storage conditions in warehouses, logging temperature trends in server rooms, and measuring humidity levels in museums.
Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions. The logger can also calculate minimum, maximum, average, and standard deviation statistics. This compact data logger has a built-in LCD screen to monitor the current temperature, relative humidity, logging status, battery use, and memory consumption in between readouts.
Features
- Easy-to-view LCD display
- Large memory capacity
- Visual memory capacity
- Visual high & low alarm thresholds
- Burst and statistics logging modes
- User-replaceable Relative Humidity sensor
- Compatible with HOBOware and HOBOware Pro software for logger setup and graphing & analysis
Important Information
Requires HOBOware software and a USB cable. (Note: A USB-A to USB-B mini cable is included w/HOBOware Pro CD or USB software purchase). See Related Products below.
-
SPECIFICATIONS
Temperature Sensor
Range -20° to 70°C (-4° to 158°F) Accuracy ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A in User Manual Resolution 0.024°C at 25°C (0.04°F at 77°F), see Plot A in User Manual Responce Time 4 minutes in air moving 1 m/s (2.2 mph) Drift <0.1°C (0.18°F) per year RH Sensor
Range 15% to 95% (non-condensing) Accuracy ±3.5% from 25% to 85% including hysteresis at 25°C (77°F); below
25% and above 85% ±5% typicalResolution 0.07% at 25°C (77°F) and 30% RH Response Time 43 seconds to 90% in airflow of 1 m/s (2.2 mph) Drift <1% per year typical Logger
Logger Operating Range Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specificationLogging Rate 1 second to 18 hours, 12 minutes, 15 seconds Logging Modes Fixed interval (normal), burst, or statistics Memory Modes Wrap when full or stop when full Start Modes Immediate, push button, date & time, or next interval Stop Modes When memory full, push button, or date & time Restart Mode Push button Time Accuracy ±1 minute per month at 25°C (77°F), see Plot B of User Manual Power Source One 3V CR2032 lithium battery and USB cable Battery Life 1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greaterMemory 128 KB (84,650 measurements, maximum) Download Type USB 2.0 interface Full Memory Download Time 20 seconds LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this rangeSize 3.66 x 8.48 x 1.52 cm (1.44 x 3.34 x 0.6 in.) Weight 30 g (1.06 oz) Environmental Rating IP50 CE The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU). -
SOFTWARE
HOBOware Software
HOBOware software is used for launching, reading out, and plotting data from HOBO® data loggers. With HOBOware, you can also check logger status, filter and export data, save changes to graphs in project files, and scale data with the Linear Scaling and Pulse Scaling data assistants. There are two versions of HOBOware: HOBOware and HOBOware Pro.
Learn more about HOBOware and HOBOware-Pro Features >>

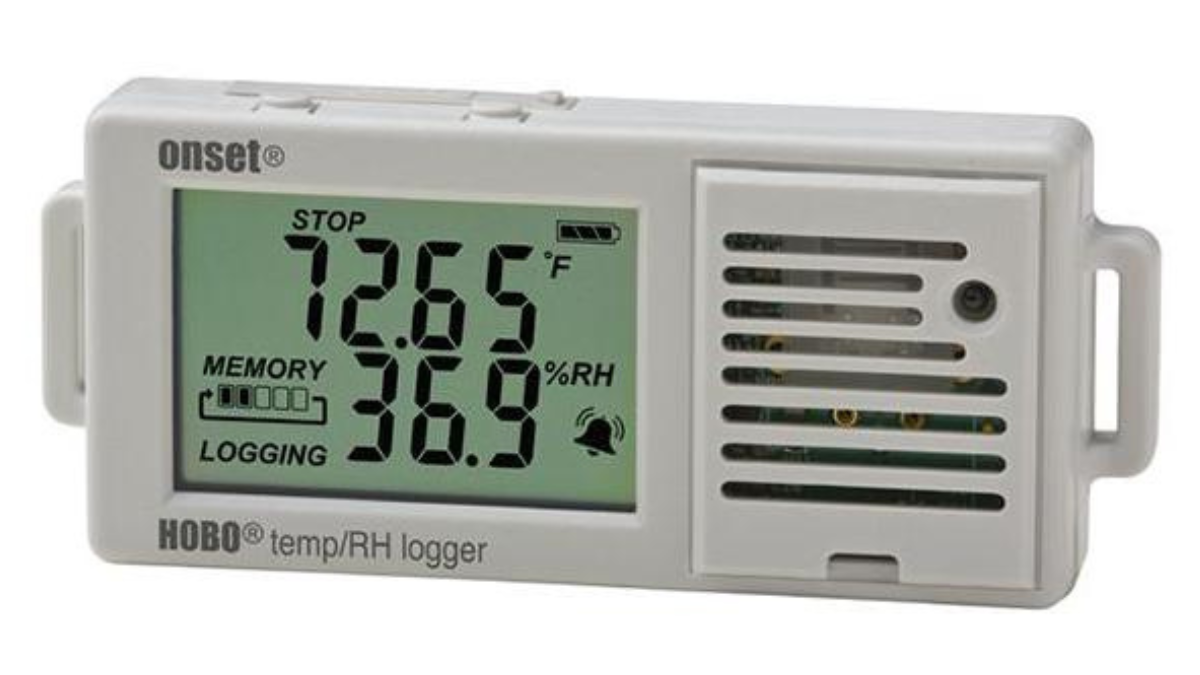

HOBO UX100 – Temp/RH 3.5% Data Logger
$277.00 ex GST
The HOBO UX100-003 Temp/RH data logger records temperature and relative humidity (within 3.5% accuracy) in indoor environments
