OVERVIEW
Enjoy Linearity Accuracy Up To 1% for Your Energy Monitoring Needs

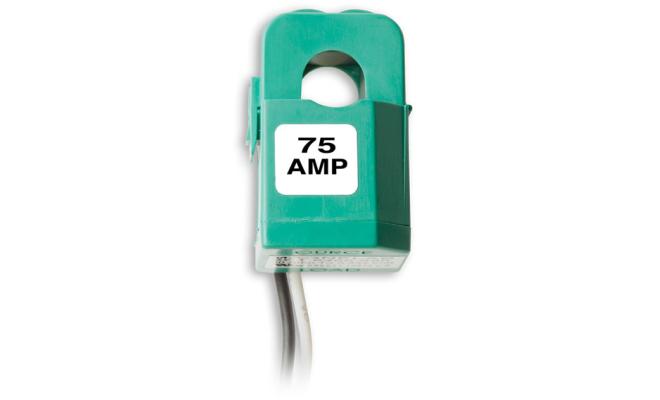

A small 5-75 AMP split-core AC Current Transformer (CT) mounted around a current carrying wire to measure AC amperage. This CT provides a .333 Volt AC output proportional to current flow and is used with HOBO data loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms. The result is an accurate current measurement for many types of electrical equipment
Features
- Output 0.333 Volt AC at rated current
- Linearity accuracy ± 1%
- Accuracy at 10% to 130% of rated current
- Split-core design for fast, easy installation
- 8 ft. (2.44m) 24 AWG twisted pair leads
- 0.40″ (10.15mm) opening
-
SPECIFICATIONS
- Rated from 0.5 – 75AMP (depending on model)
- Output 0.333 Volt AC at rated current
- Operates from 50Hz to 400Hz
- UL Recognized, CE and RoHS compliant
- Linearity accuracy ± 1%
- 8 ft. twisted-pair lead
- Accuracy at 10% to 130% of rated current
- Self-locking mechanism guaranteed for 500 closing
- Width: 1.00 inches
- Height: 1.56 inches
- Thickness: 1.05 inches
- Window: 0.40 inches
HOBO Mini Split-core AC Current Transformers
$152.00 – $174.00 ex GST
The small size 5 to 75 AMP split-core AC Current Transformers (CT) are mounted around a current carrying wire to measure AC amperage; used with HOBO data loggers via the FlexSmart TRMS module and with kWh transducers (WattNodes) for True RMS measurement of sinusoidal and non-sinusoidal waveforms.
