OVERVIEW
Elevate Your Water Monitoring Experience with Precision

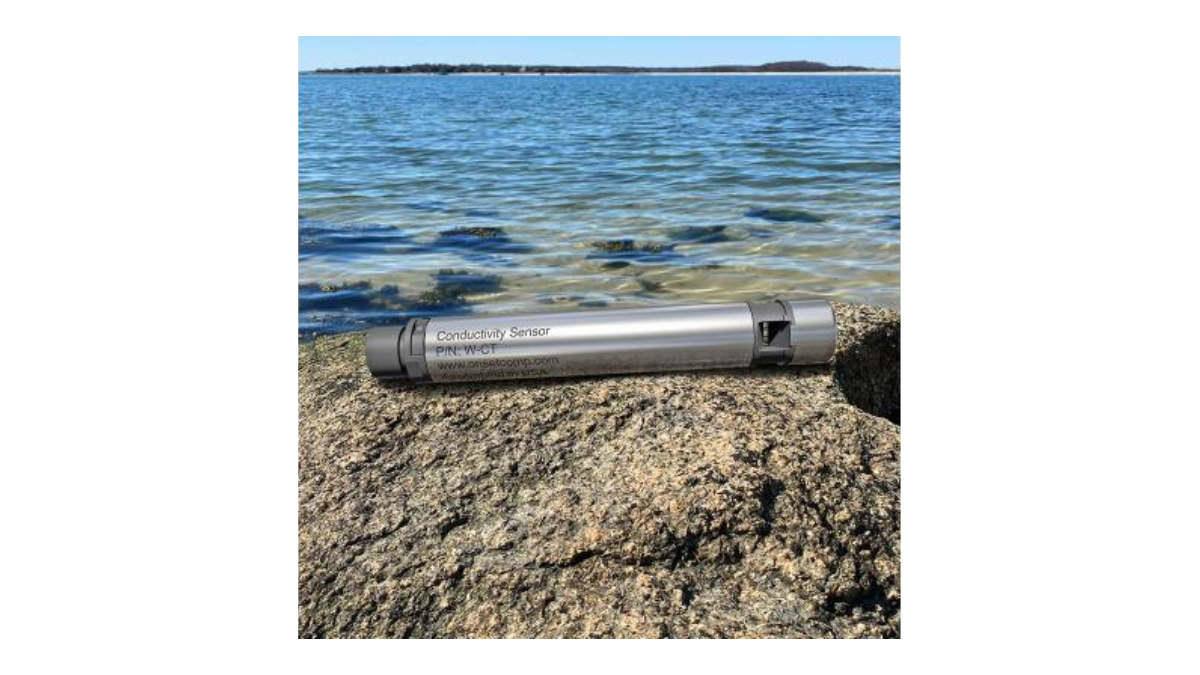

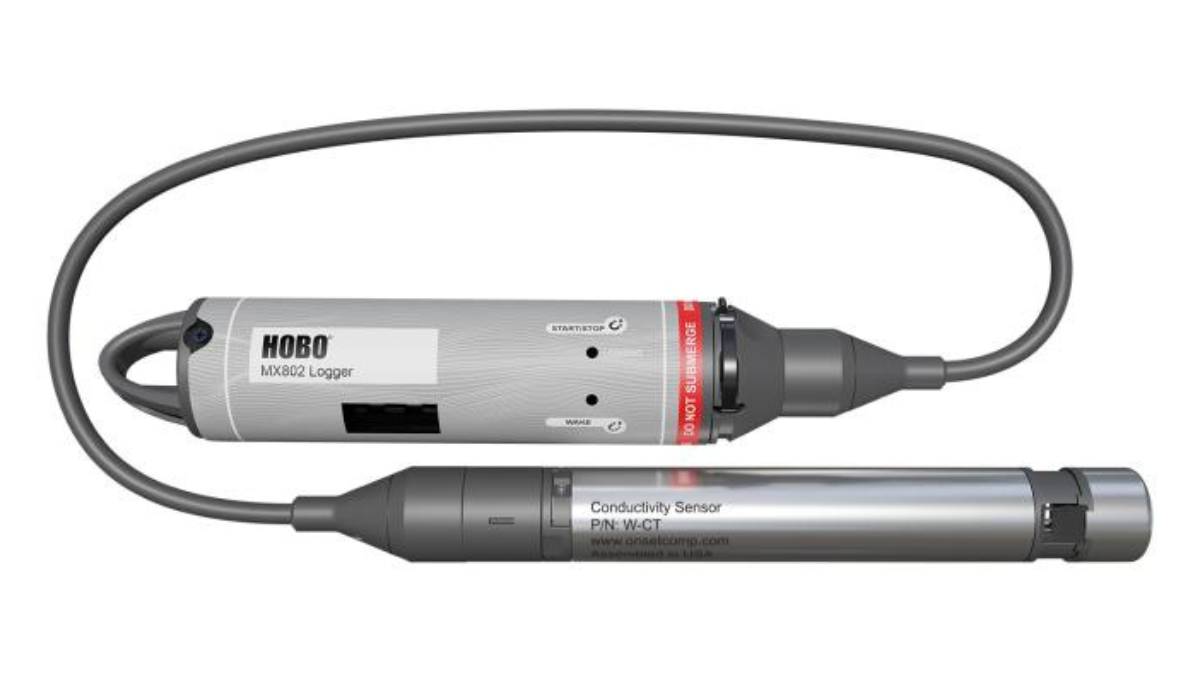

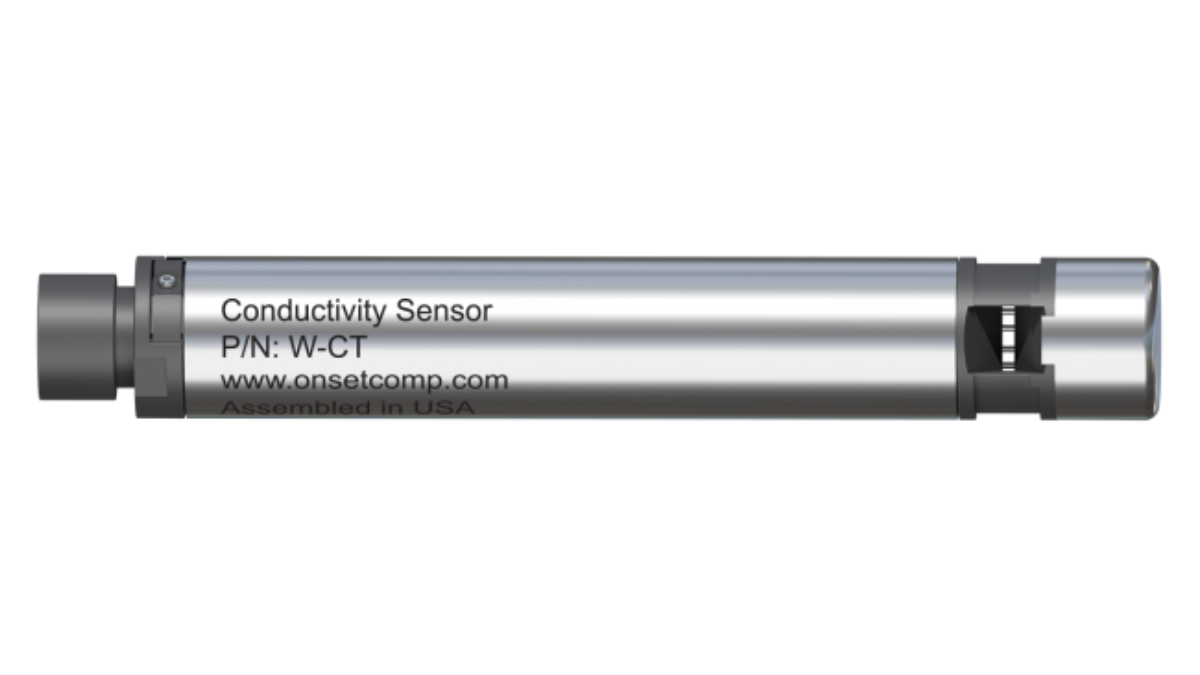

Enhance your water monitoring capabilities with the versatile Conductivity and Temperature Sensor crafted for compatibility with HOBO MX800 Series Water Loggers. This adaptable sensor accurately measures conductivity and temperature, empowering the logger to calculate specific conductance, salinity, and total dissolved solids (TDS). Enjoy hassle-free data retrieval by directly attaching the sensor to the MX801 model or using a cable connection with the MX802 model, ensuring efficient operation without disturbing the sensor’s placement in water.
Simplify Data Collection and Analysis for Seamless Insights
Features
- Utilise the 4-electrode conductivity sensor with an extensive measurement range suitable for freshwater and saltwater monitoring.
- Central positioning of the conductivity sensor reduces interference from stilling wells or protective guards.
- The 1” diameter design allows for seamless deployment in narrow wells, connecting to MX802 via cable above the well.
- Benefit from rapid response times with the temperature sensor strategically located near the sensor tip.
- The specially treated stainless steel construction ensures durability, even in challenging saltwater environments.
Important Information
Requires a HOBO MX801 or MX802 Data Logger, the HOBOconnect app, and a compatible mobile device or Windows computer. System requirements for the app can be found at the bottom of our HOBOconnect software page.
-
MX800 DATA LOGGER
Improve your monitoring precision with our HOBO MX800 Series Multiparameter Loggers.
This sensor requires an MX800 Series Data Logger for use. Customise your configuration to elevate your environmental data collection capabilities. Seamlessly integrate interchangeable sensors for conductivity, temperature, depth, and soon-to-be-added dissolved oxygen measurements.
Visit our MX800 Logger page to get started on optimising your monitoring setup today!
-
SPECIFICATIONS
Conductivity Measurements
Measurement Range Electrical conductivity and specific conductance: 0 to 100,000 µS/cm
Salinity using PSS-78: 2 to 42 PSU
Total Dissolved Solids (TDS): 0 to 100,000 mg/LCalibrated Range Electrical conductivity: 50 to 80,000 µS/cm | 5° to 35°C (41° to 95°F) Accuracy Conductivity: +/-2% or 15 µS/cm whichever is greater
Salinity: +/-2% of reading or 0.1 PSU, whichever is greaterResolution Conductivity:
0.1 µS/cm from 0 to 1,000 µS/cm
1 µS/cm from 1,000 to 10,000 µS/cm
10 µS/cm from 10,000 to 100,000 µS/cm
Salinity: 0.01 PSU
TDS: 0.1 mg/LResponse Time 1 second to 90% at a stable temperature Temperature Measurements
Range -20° to 50°C (-40° to 122°F), non-freezing water Accuracy ±0.15°C (±0.27°F) from 0° to 50°C (32° to 122°F) Resolution 0.01°C at 25°C (0.018°F at 77°F) Response Time 3 minutes to 90% in water (typical) Drift <0.1°C (0.18°F) per year Sensor
Dimensions 2.5 cm (1 inch) diameter, 15 cm (6 inches) length Weight Approximately xx g (xx oz) in air; approximately xx g (xx oz) in saltwater Wetted Materials Passivated 316 Stainless steel housing rated for use in saltwater, Viton and Buna-N O-rings, PET sensor connector
Conductivity sensor: PET, platinum plating on electrodes
Note: Sensor should be mounted so that it is not in contact with other metalsEnvironmental Rating IP68; Waterproof to 100m -
HOBOCONNECT SOFTWARE
Download the free HOBOconnect app for your iOS or Android mobile device or Windows computer today.
Onset’s HOBOconnect app, accessed from a free download from the iTunes or Google Play app store, or your pc, makes it quick and easy to configure compatible MX Series data loggers (chart below) and manage the collected data. From your mobile device, tablet, or Windows computer, users can view data in graphs, check the operational status of loggers, share data files and graph images for analysis in Excel, Numbers, and other applications, and store data in the cloud. HOBOconnect also makes it fast and easy to set up audible alarm notifications so users are immediately notified of problems.
Learn more about HOBOconnect >>
HOBO Conductivity Sensor | MX800 Series
$1,265.00 ex GST
Enhance your water monitoring with the versatile conductivity and temperature sensor compatible with HOBO MX800 Series Water Loggers. This interchangeable sensor measures conductivity, temperature, specific conductance, salinity, and total dissolved solids (TDS), offering easy attachment options for efficient data collection without disturbing sensor placement in water.
Required: HOBO MX801 or MX802 Data Logger for operation
